Digital Dashboard with built in GPS |
The new DaVinci Digital Dashboard has been directly developed from the experience Starlane has acquired in the MotoGP, Superbike and Supersport championships.
|
|

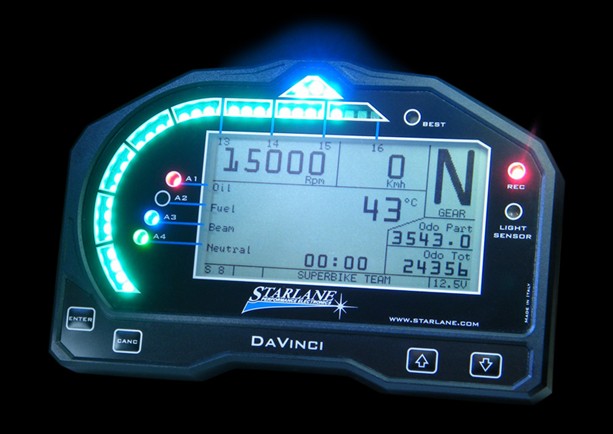

DaVinci-S with display on Street layout
|
The new DaVinci Digital Dashboard stands out from liquid crystal display full-screen systems (LCD) because of the exceptional readability of the tachometer with new Ultra-bright LED’s. This solution makes it perfectly visible even in case of direct sunrays or from a very angled view. Moreover, the LED solution totally cancels the delay in signalling the engine speed, which is typical of liquid crystal displays (LCD). The aerial and the GPS receiver – totally built in the instrument and without any external accessory – enable the user to activate the laptimer functionalities with times and intermediates from GPS, i.e. without using any track-edge apparatus, and to acquire trajectories for comparison on the PC. The solution with USB cable and the high-speed Bluetooth wireless mode are both made available for computer connection.
|
|

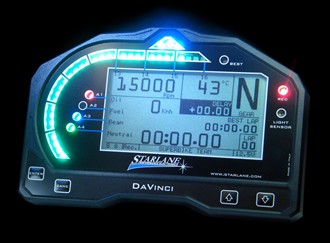

DaVinci-S with display on Laptimer layout
|
DaVinci is complete with the SAFD (Starlane Automatic Finish line Detection) innovative function Starlane has developed for automatically positioning the finish line on the main straight stretch without requiring the user’s action, even on unknown tracks.
|
|
Led Bar set on Cursor mode
|
VERSIONS:
The new DaVinci Digital Dashboard is made available in the following versions:
- DaVinci-S: universal dashboard
- DaVinci-SX: universal dashboard with built-in Power Shift NRG quick shifter
- DaVinci-R: dashboard with built-in data acquisition and Power Shift NRG quick shifter
The R and SX versions also integrate the Power Shift quick shifter module with the exclusive NRG dynamic washer sensor for setup according to the engine speed.
The new DaVinci universal instrumentation can be totally setup according to the operating parameters of the vehicle from the multipage menu and the DigiRace-MMX software.
Plug kits are also made available as an optional for the most widespread motorbike models for direct connection with the original wiring without any special electric action.
|
Specifications:
|
- 5Hz GPS receiver and aerial built in the instrument
- Function for automatically positioning the finish line without the user’s action (SAFD)
- Indication of the ideal time that can be reached
- Double resettable hour-counter for servicing the engine at regular intervals
- Storage of the finish line coordinates of the tracks most largely used
- Data download on PC with USB cable or Bluetooth wireless
- Built-in NRG quick shifter (R and SX versions only)
- Ultra-bright LED-bar lap counter, cyano colour, with automatic regulation according to room light
- Settable shift light
- Shock-proof body
- 4 configurable alarms (e.g. Neutral-Reserve-Oil-Driving beams)
- Indication on the display: RPM, SPEED, TEMPERATURE, TOTAL KM, PARTIAL KM, GEAR ENGAGED, LAP TIME, BEST LAP, DELAY, ETC.
- Membrane keyboard
- Multipage menu
- Automatic satellite chronometer with 1/100 second resolution
- Double-function Best Lap LED (its light is fixedly on if the time is better than the previous lap and it will flash on and off at the best lap), also active on intermediates
- 999 lap memory up to 99 trial sessions
|
Some Optional Accessories:
|
| SPEED KIT |
Inductive speed sensor kit with universal support, it directly senses the brake disc or sprocket bolts without needing any inconvenient magnet on the wheel.
(CSK)
 |
|
| WATER TEMPERATURE SENSOR |
includes 150cm. extension
(CH2OM10)
 |
|
| SLEEVES FOR WATER TEMPERATURE SENSOR |
DIAM. 10mm. (MAN10)
DIAM. 19mm. (MAN19)
DIAM. 26mm. (MAN26)
 |
|
| PLUG KIT |
Specific Plug & Play connection loom for the most common street bike models.
 |
|
|
|
|
|
New Digirace-MMX software that replaces the previous PRO and LE versions.
The DigiRace-MMX graphical interface is so user-friendly and intuitive that you can analyse acquired data rapidly and accurately.
Digirace-MMX integrates both previous packages features allowing the rookie user to activate the simplyfied analysis and the most skilled one to switch to professional interface.
It can be used with all Starlane devices (ex. Stealth GPS-2, Athon GPS, Xenon, etc.) by selecting the model in the Device menu. |
The main functions of DIGIRACE-MMX 1.0:
|
- Download of the lap times and test sessions with the maximum Speed, Engine Rev and Temperature values.
- Analysis and overlap of the paths detected by the GPS system.
- Analysis, printing and saving of downloaded data on files.
- Recall and print of sessions you have saved before.
- Choice between Simplyfied and Professional interface.
- Data export in CSV format for Video Overlay or Excel.
- Lap export for the WWW.STARDROME.COM community.
|

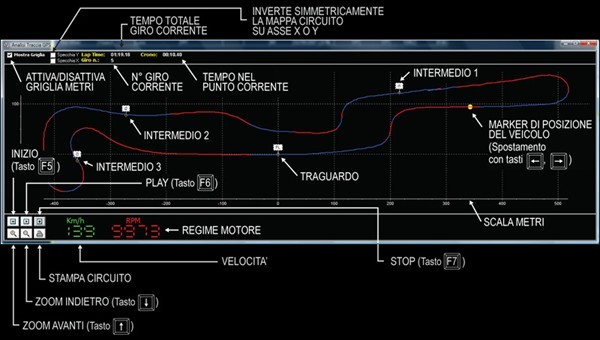

GPS TRACK |
 |
The window intended to analyse the GPS track represents the track with the paths run across by the driver. The RED and BLUE areas respectively indicate ACCELERATION and DECELERATION phases. The vehicle position is indicated by a yellow marker you can arrange at your own discretion by using the mouse or the  ,  keys. |
|

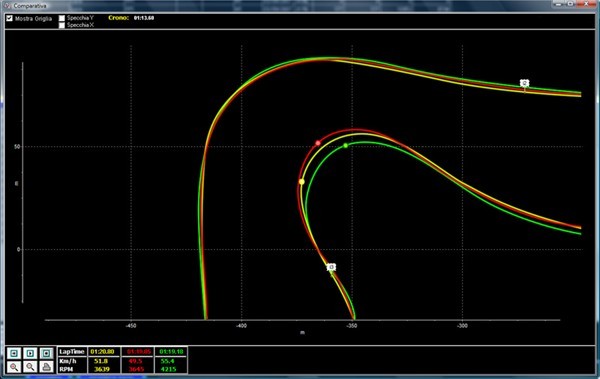

PATHS COMPARISON |
 |
You can overlap the paths of several laps. |
|
ATTENTION, for WINDOWS 7 users:
- Install DigiRace-MMX
- RIGHTCLICK on DIGIRACE-MMX icon
- Select PROPERTIES
- In the COMPATIBILITY TAB check the "RUN THIS PROGRAM AS AN ADMINISTRATOR" flag in the PRIVILEGE LEVEL section
|
| Download USER GUIDE for Starlane Davinci |
